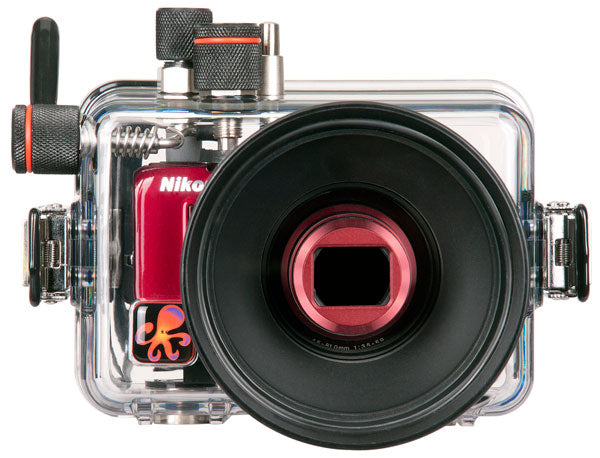

Nikon Coolpix S9200, S9300
- Product #6184.93
US Market Suggested Retail Price $400
Camera not included.
Dive into underwater photography with this compact and simple to use combination.
The Compact Digital housing is high quality, durable, built to last, and backed by Ikelite's long-standing
reputation for excellence.
All camera controls except the Rotary Multi-Selector
are fully functional through the housing and depth rated to 200ft (60m).
Rotary Multi-Selector functions can be accessed using the up/down and left/right controls on the
back of the camera.
Two 12-24 threaded mounts on the bottom of the housing allow for the
secure attachment of optional trays and lighting accessories.
Includes one 1cc tube of silicone lubricant, flash diffuser, flash deflector and vinyl port cover.
- Size and Weight
Width ...... 6.8 in. (170mm) including controls
Height ...... 5 in. (130mm) including controls
Depth ...... 5.5 in. (140mm) including controls and lens port
Weight ...... 2.9 lb. (1320g)
Buoyancy ...... Slightly negative in fresh water
- Spare Parts
#0109 Spare Main Housing O-Ring
#0132.30 Port-to-Housing O-Ring
#5020 Silicone Lubricant in 4 1cc Tubes
#0200.08 Replacement Vinyl Port Cover
- Trays with Release Handles
Optional Tray with Release Handle(s) provide comfortable handling underwater and
attachment points for substrobes and accessories.
Click here to see Trays with Release Handles.
- Camera's Built-in Flash
An included flash diffuser improves lighting quality when the camera's built-in flash is used.
A built-in flash is effective between 1-3 feet (0.3-0.9m) from the subject in clear conditions.
For best results an external underwater strobe is recommended.
- External Color Filters
Color filters replace some of the reds, oranges and more natural tones
that would otherwise be lost underwater. Effective in relatively shallow, sunny conditions.
Available as #6441.46 for tropical blue water and #6441.86
for use in green water settings. For optimum results use in combination with manual white balance
(see camera user guide for information on setting custom white balance).
- External Underwater Strobes
Ikelite strobes are much more powerful, recycle more quickly, and eliminate more
backscatter than the camera's built-in flash. Don't settle for flat, blue-green images.
Use the AutoFlash AF35 for easy automatic exposure. Or add an optional DS Substrobe
with EV Manual Controller for more power and wider angle of coverage.
For the best results in all conditions.
Click here to see all recommended strobe systems.
- Video Lighting
Illuminate the truest colors day or night with a high-powered video light. For occassional
clips, the Pro-V8 is perfect for close-up work and focus assistance.
For the serious shooter we recommend the super-powerful PRO-2800 for maximum output and versatility.
Tray with release handle(s)
required for attachment, not included.
Click here to see the PRO-2800 LED Video Lite.
Click here for
more information on the Pro-V8 LED Video Lite.
- External Wide Angle Option.
The WD-4 Wide Angle Conversion Dome corrects for refractive magnification to provide the camera's full angle of coverage underwater.
The conversion dome may be removed and replaced underwater and requires no
modification to the housing's standard port.
Click Here for more information on the WD-4.
Other external wide angle lenses by Ikelite, Inon, Epoque and other manufacturers are not usable
with this camera at this time.
- External Macro Adapter.
Optional adapter #9306.82 (MSRP $50) slides over the front of the lens port and allows for the
attachment of 67mm threaded macro lenses from Inon and Epoque. The adapter may be removed and
replaced underwater and requires no modification to the housing's standard lens port.
Macro lens not available for purchase through Ikelite.
Not for use with 67mm threaded wide angle lenses.
Ikelite products are available worldwide through any Authorized Ikelite Dealer.
Click Here for a complete listing.
