RC1 Olympus & Panasonic TTL Receiver for DS Strobes

SKU: 4413

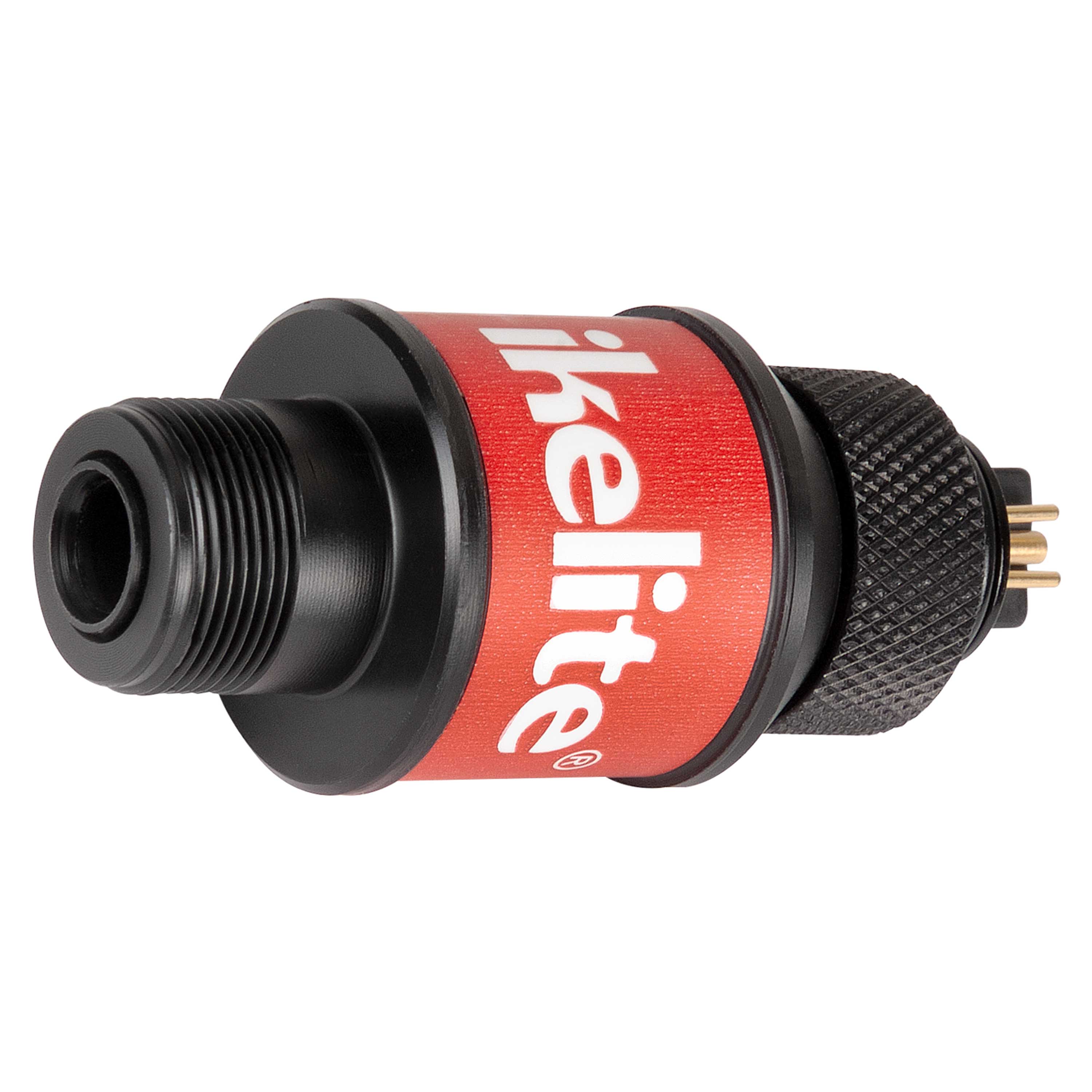

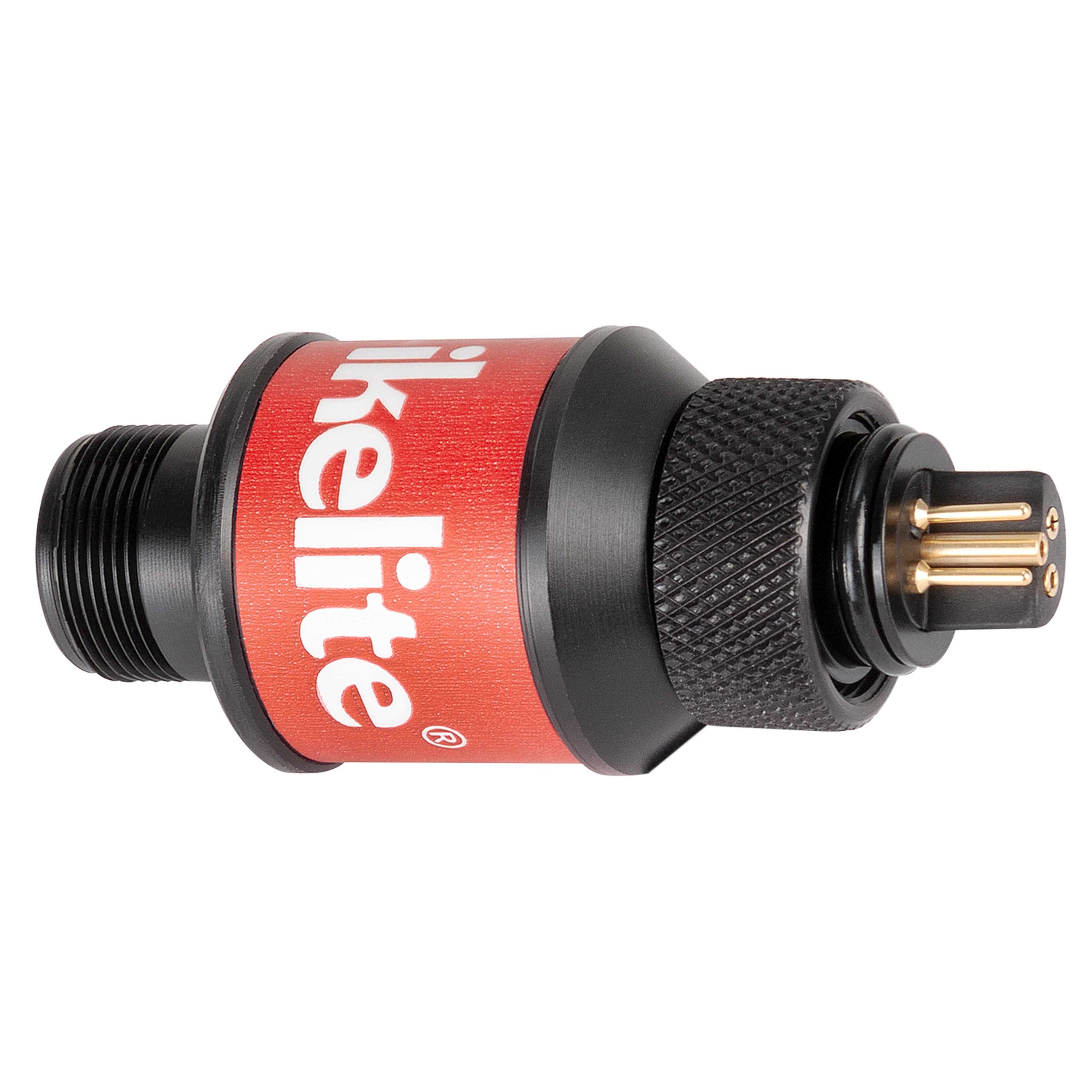

RC1 Olympus TTL Receiver for AOI LED Flash Trigger and DS Strobes

Name: RC1 Olympus TTL Receiver for AOI LED Flash Trigger and DS Strobes
Brand: Ikelite
SKU: 4413
Price: 175.0 USD
Availability: InStock

$ 175.00

Enjoy true Olympus RC TTL strobe exposure via fiber optic connection with your compatible Ikelite DS strobe. This Receiver is specifically calibrated for use with AOI Flash Triggers in RC Mode in the following underwater housings**:

AOI UH-EPL10R Underwater Housing for Olympus E-PL9/10

AOI UH-OM1 Underwater Housing for OM System OM-1

AOI UH-EM1III Underwater Housing for Olympus OM-D E-M1 III

AOI UH-EM10 IV Underwater Housing for Olympus E-M10 IV

This Receiver is not intended for use with Ikelite brand underwater housings for the above cameras or for housings where the strobe is triggered directly from the camera’s built-in flash.

With the RC1 TTL Receiver and a compatible camera with RC flash mode, actual exposure data is calibrated and communicated directly by the camera. This is far more accurate and consistent than "slave TTL" modes built into some underwater strobes which watch the camera's built-in flash and react.

An individual RC1 TTL Receiver and compatible fiber optic cord is needed for each strobe. Use of two strobes requires two receivers. This product attaches to an Ikelite DS strobe. It is not intended to be attached to a housing and will provide no functionality if attached to a housing bulkhead. This receiver is not compatible with non-Ikelite strobes or non-digital Ikelite strobes.

Depth Rating

330 feet (100 meters)

Weight

3 oz

Have questions?

We're here for you for every step along the way. Email ikelite@ikelite.com for help on gear selection, assembly, camera settings, and photo advice. We can even help you decide where to dive!

Instruction manual

RC Mode TTL Strobe Exposure

The Sensor makes DS Strobes compatible with the Olympus and Panasonic LUMIX RC flash mode, providing automatic TTL exposure. For accurate performance set the DS strobe to “TTL” and the camera’s flash mode to “RC”. Using the camera’s flash exposure compensation controls to make fine tuned adjustments to the strobe’s intensity.

Manual Strobe Exposure

The strobe's output may be adjusted using the manual power settings built into the strobe (varies by model). Make sure the camera’s flash mode is set to manual. Choose the minimum flash output necessary in the camera to trigger the DS strobe. This will conserve the camera’s battery power.

Camera and Housing Compatibility

AOI UH-EPL10R Underwater Housing for Olympus E-PL9/10
AOI UH-OM1 Underwater Housing for OM System OM-1
AOI UH-EM1III Underwater Housing for Olympus OM-D E-M1 III
AOI UH-EM10 IV Underwater Housing for Olympus E-M10 IV

This Receiver is not intended for use with Ikelite brand underwater housings for the above cameras or for housings where the strobe is triggered directly from the camera’s built-in flash.

Strobe and Cord Compatibility

Fiber Optic Cord Compatibility:

Ikelite Fiber Optic Coiled Cord # 4501
INON Optical D Cable "Non-wireless type" L-Connector
SEA&SEA Fiber Optic Cable (L-type) # 50107
SEA&SEA Fiber Optic Cable II # 50128
Olympus UW Fiber Optic Cable PTCB-E02
Nauticam Optical Fiber Cable # 26211 Nauticam to INON
Nauticam Optical Fiber Cable # 26212 Nauticam to Sea&Sea

Consult with your housing manufacturer for information on what type of fitting is provided at the housing end. The fiber optic ports on Ikelite housings are made to the same standard as SEA&SEA and Olympus brands.

Strobe Compatibility:

Ikelite DS50 above serial # 70000
Ikelite D51
Ikelite DS125 above serial # 5000
Ikelite DS160, DS161, DS162
Ikelite DS200 above serial # 7163
Ikelite DS230, DS232

This product is not compatible with non-digital Ikelite strobes, SEA&SEA, INON, or other non-Ikelite strobes.
