Ikelite Underwater Housing for Panasonic Lumix ZS200, TZ200, TZ202, TZ220

SKU: 6170.12

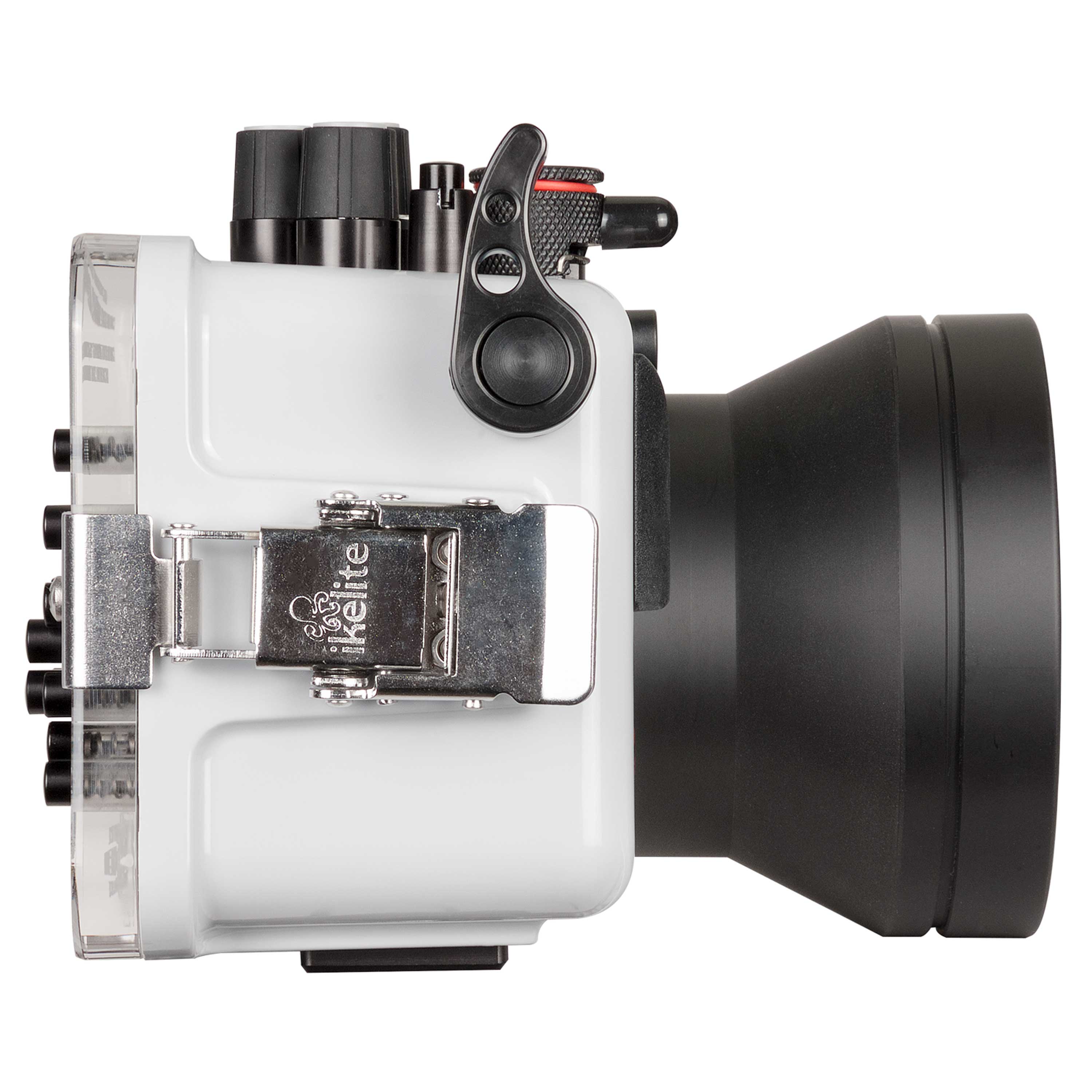

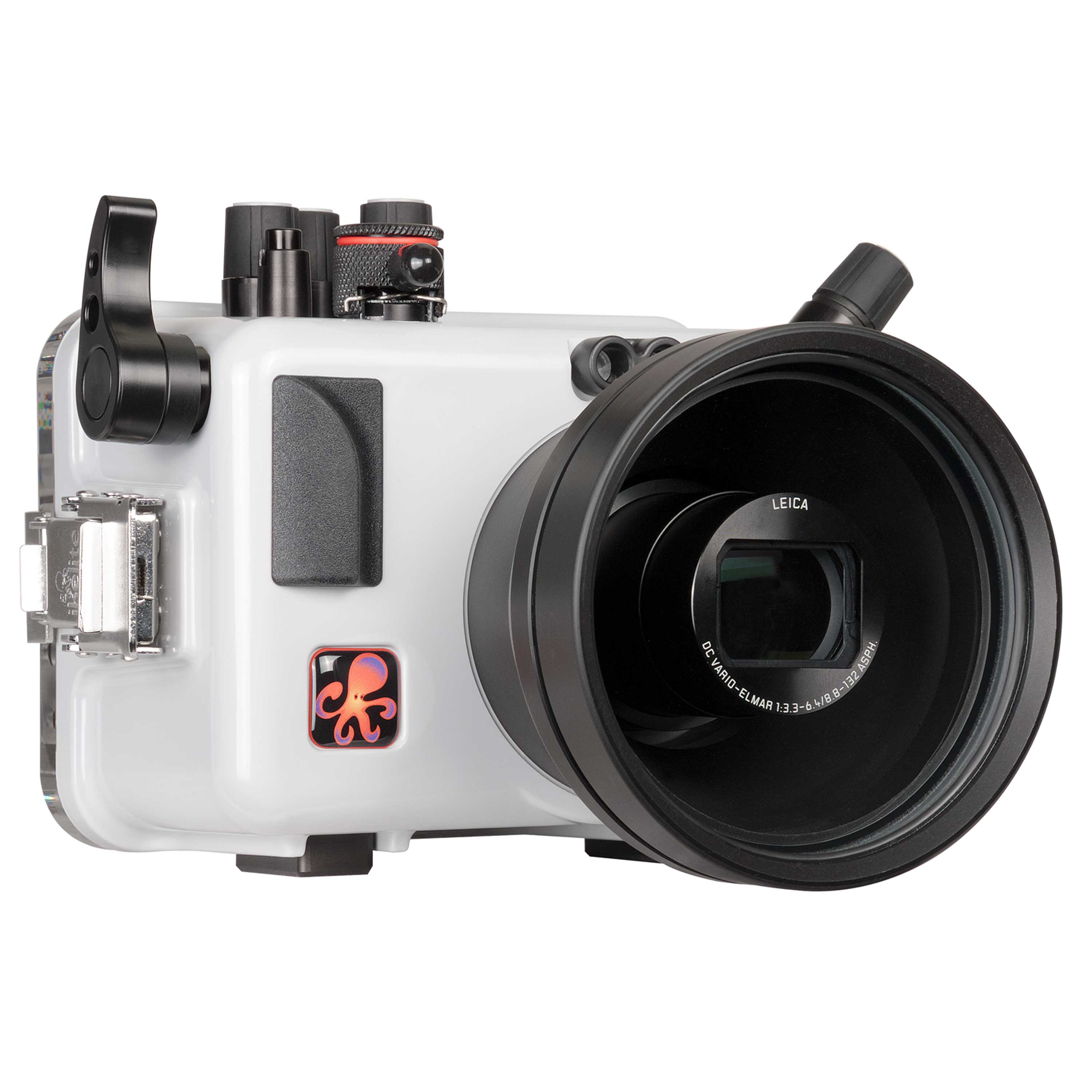

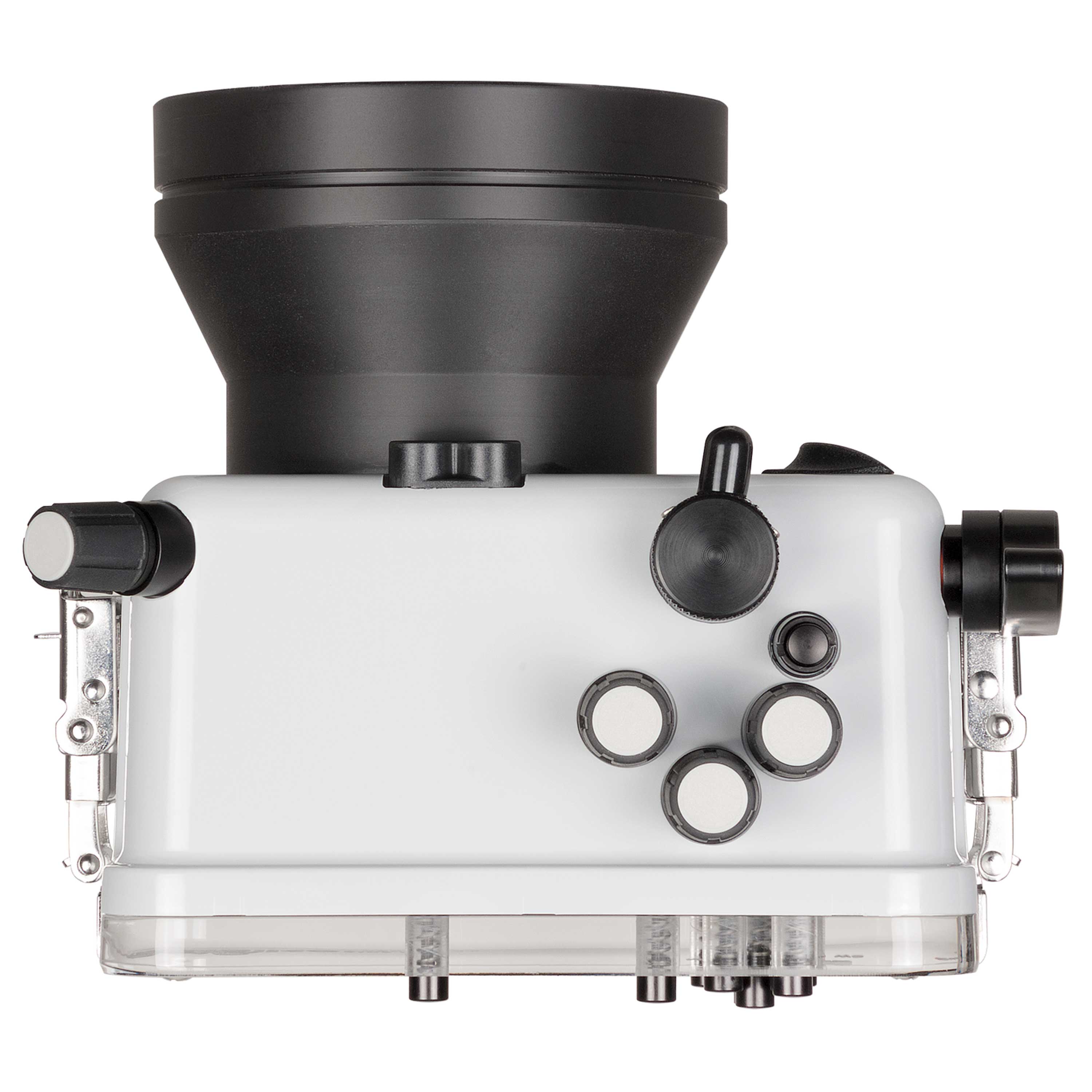

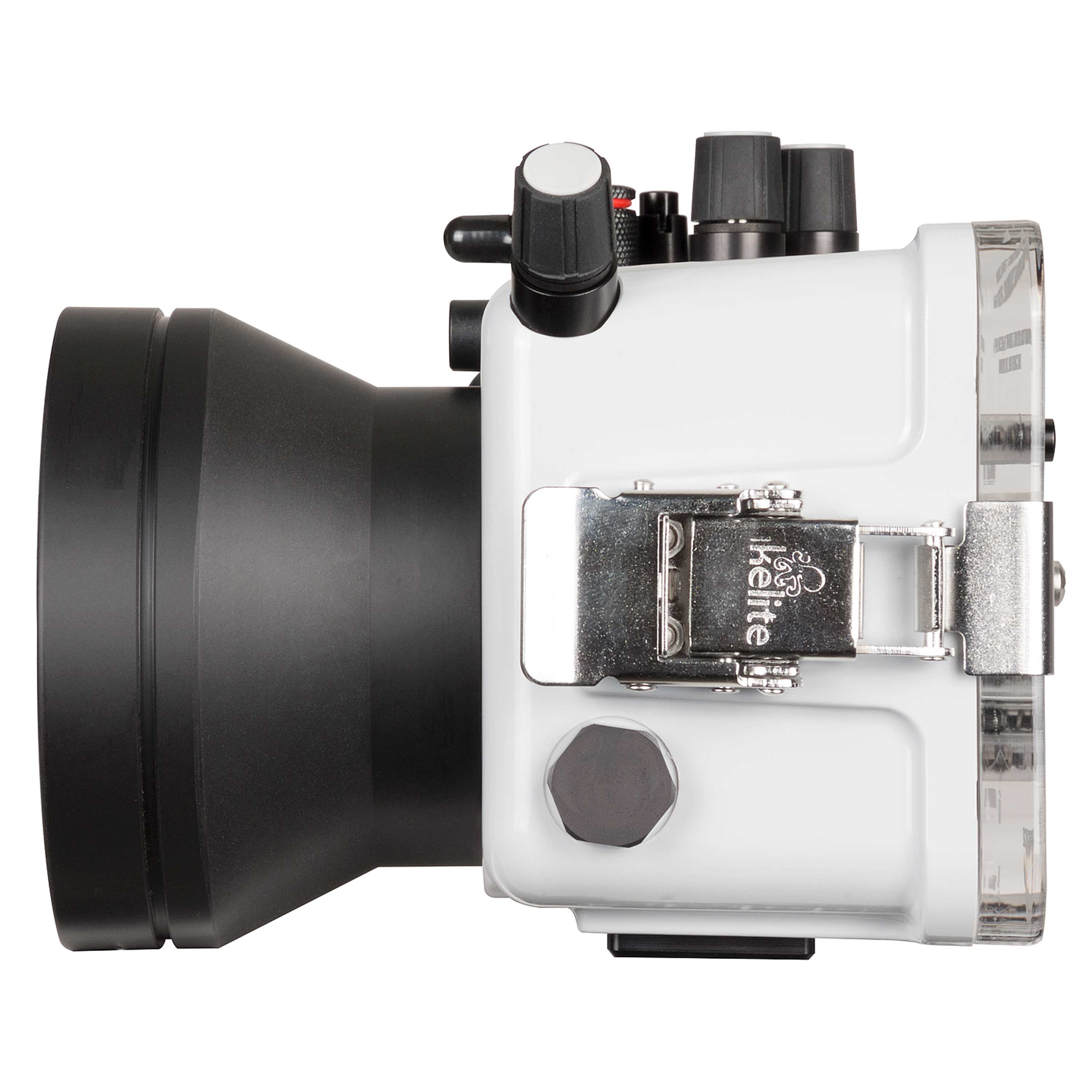

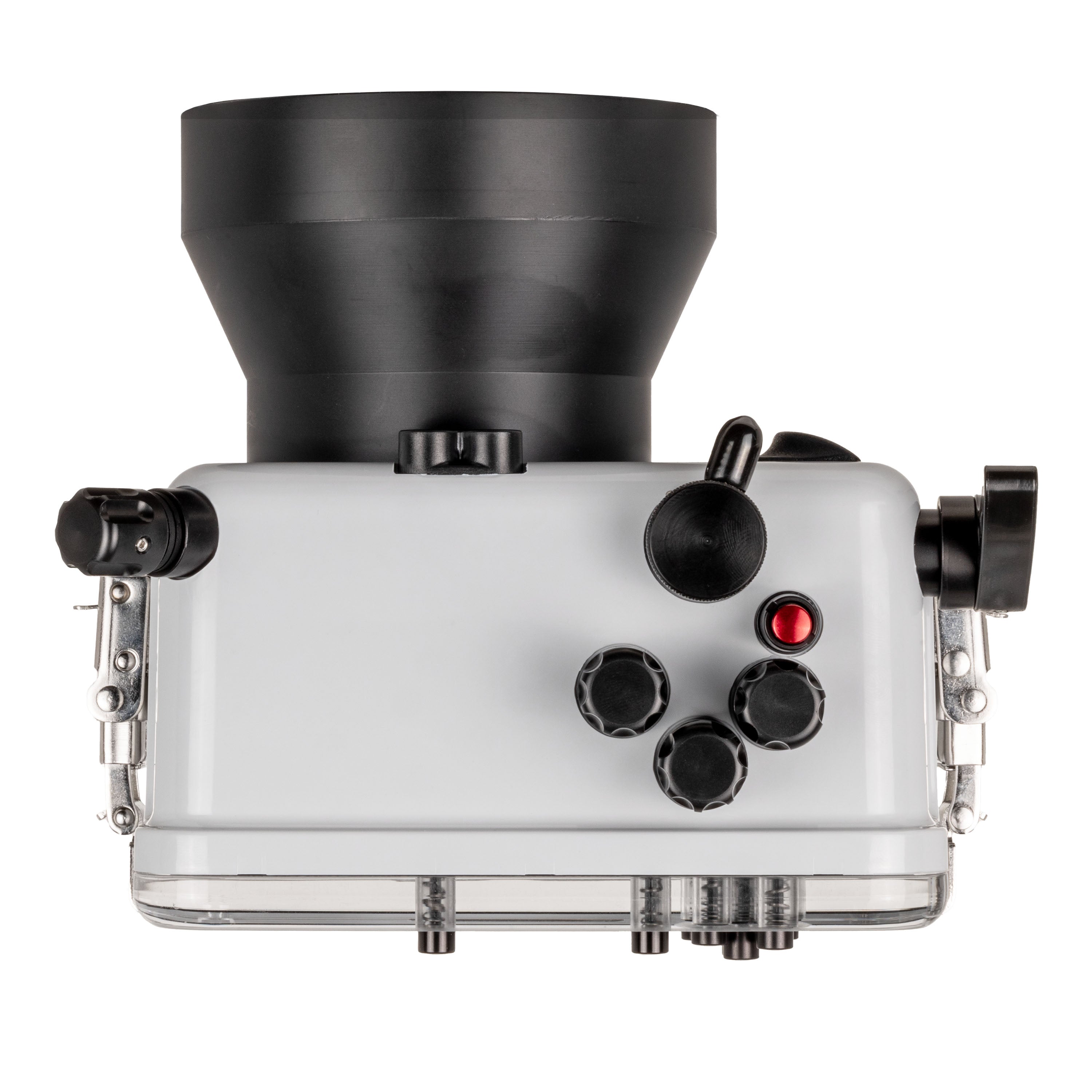

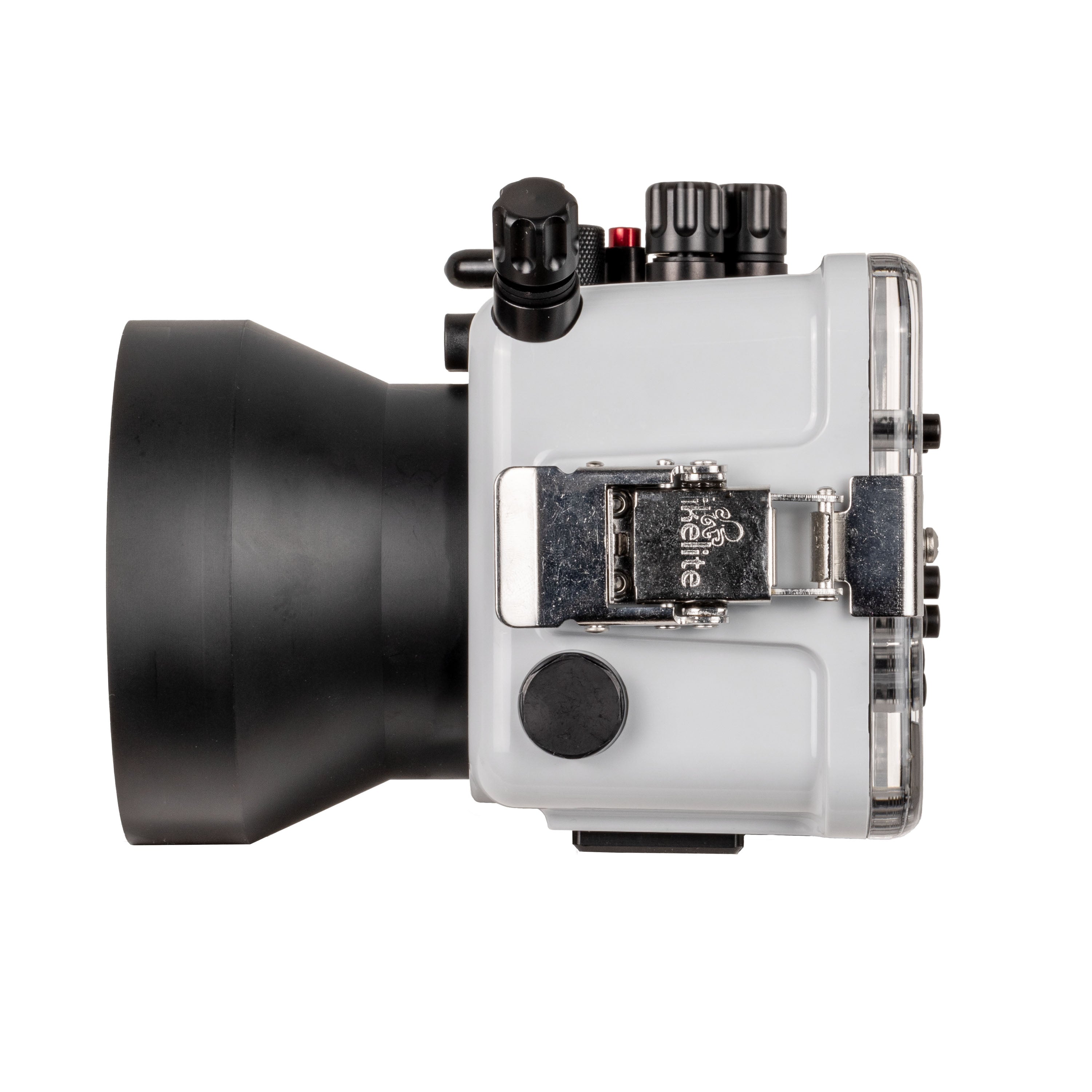

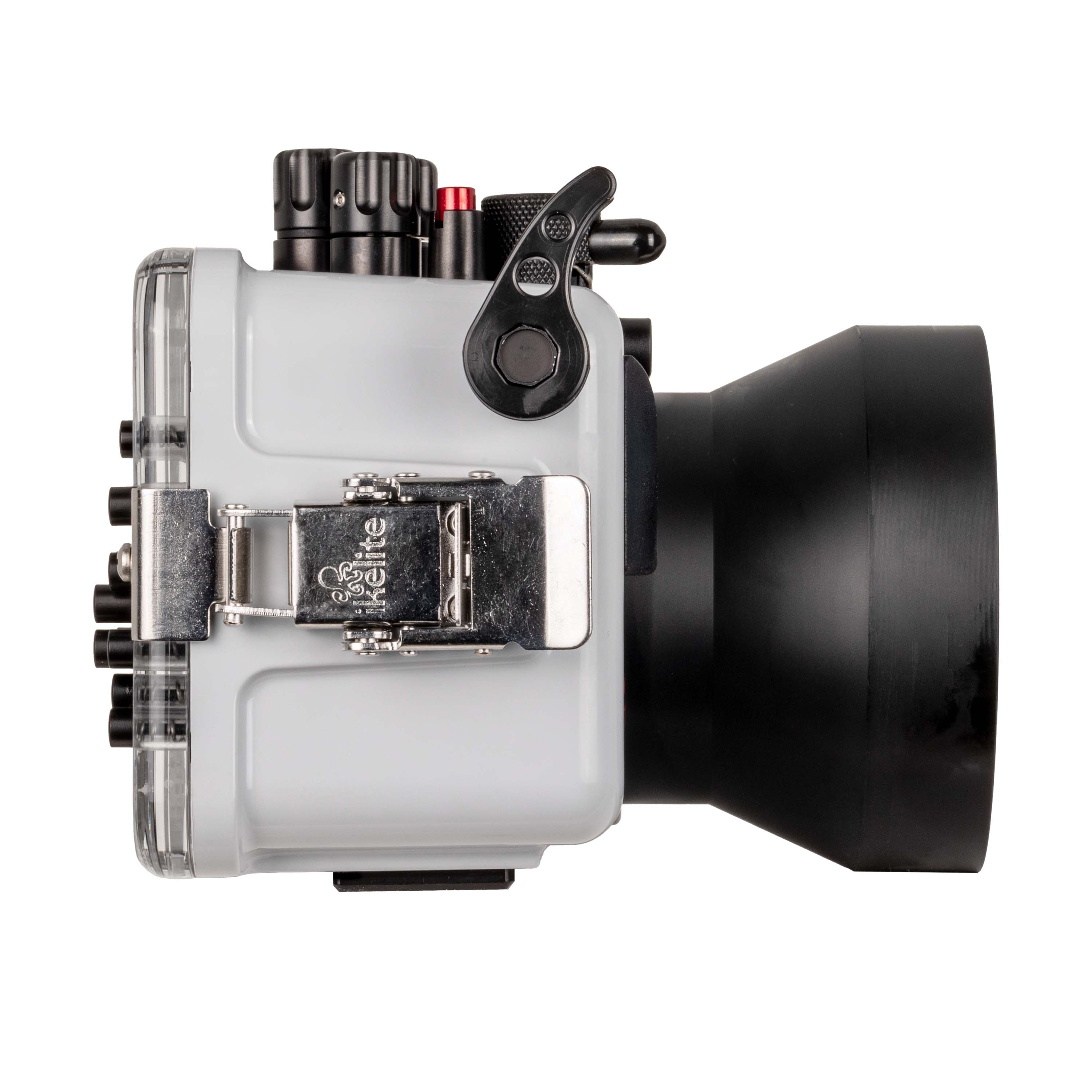

Underwater Housing for Panasonic Lumix ZS200, TZ200, TZ202, TZ220

Name: Underwater Housing for Panasonic Lumix ZS200, TZ200, TZ202, TZ220
Brand: Ikelite
SKU: 6170.12
Price: 695.0 USD
Availability: InStock

$ 695.00

A full featured and durable underwater housing for Panasonic Lumix DC-ZS200, DC-TZ200, DC-TZ202, and DC-TZ220 digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

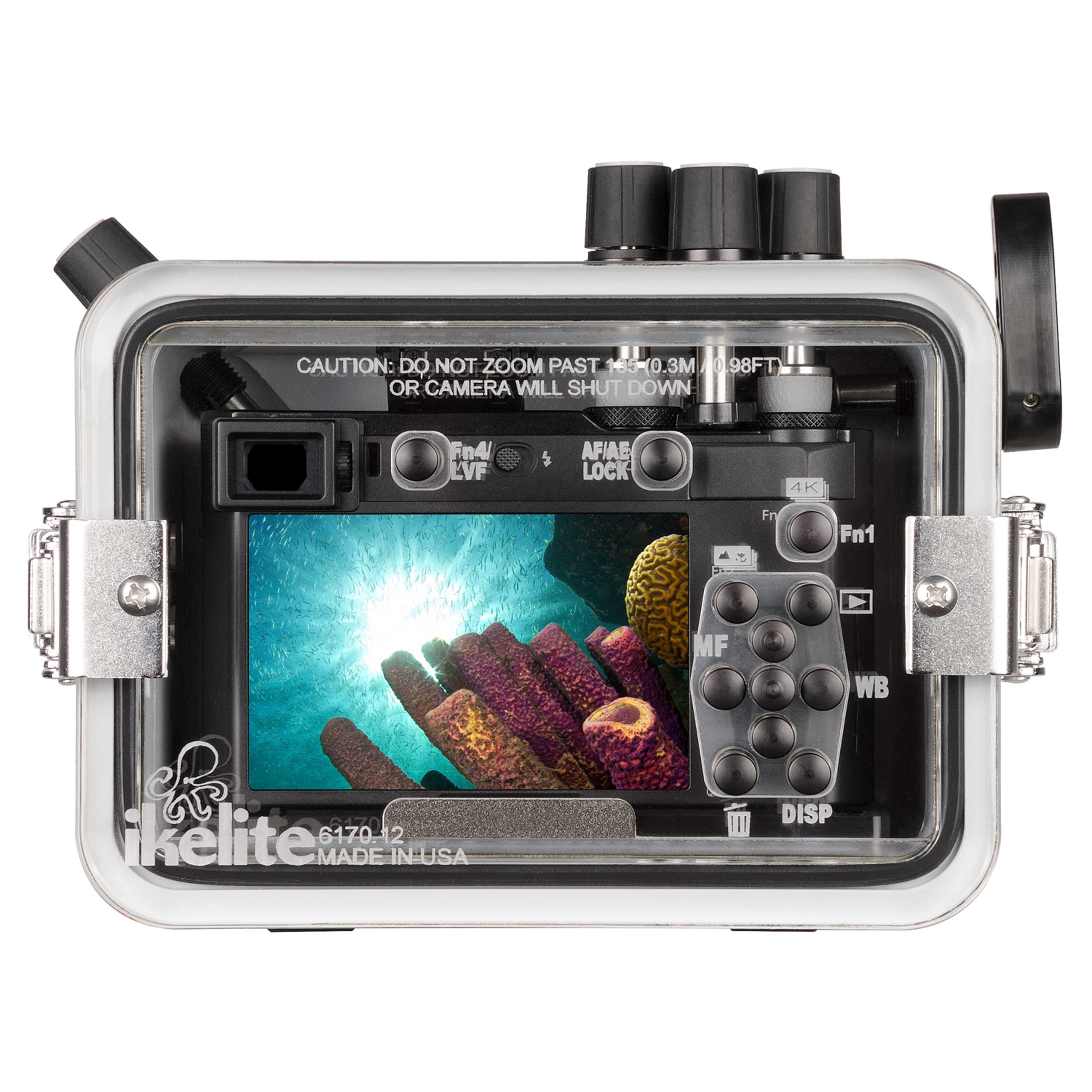

Clear Housing Back

See that your camera is dry inside

Specifications

Take full creative control of your camera up to 200 feet

Controls

Controls for all camera functions except Diopter Adjustment Dial and Flash open lever; Flash may be opened prior to installing camera in the housing

Strobe Connector

Fiber Optic Ports

Lens Port

3.9" Diameter

Accessory Port

1/2-20 Thread

Depth Rating

200 feet (60 meters)

Weight

2.8 lb

Dimensions

6.2 x 5.1 x 6.8" (157 x 130 x 173 mm)

Rear O-Ring

0109

Ikelite underwater housing with dc series dome port copyright Dave Fason

When to Use a DC Series Dome Port Underwater

Have questions?

We're here for you for every step along the way. Email ikelite@ikelite.com for help on gear selection, assembly, camera settings, and photo advice. We can even help you decide where to dive!

Instruction manual

Construction

Our specially formulated ABS-PC blend housing is highly durable yet lightweight for travel. The light color keeps your camera cooler when shooting in warm, sunny environments.

Lens Support

The optional WD-4 Wide Angle Dome # 6430.4 provides a wider angle of view underwater without the edge distortion, heaviness, or difficult attachment typically associated with an external wide angle lens. The WD-4 is a 0.75x magnification factor and simply slides on and off of the housing's lens port.

A press-fit Macro Adapter # 9306.78 is available for the attachment of 67mm threaded accessory macro lenses. We recommend a macro lens which is designed for underwater use like those from Epoque, INON, Subsee, Nauticam, and other manufacturers. The adapter should not be used with 67mm threaded wide angle lenses. The wide angle lens would be too far away from the camera's lens to provide an improved image.

Wi-Fi Transfer

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

Compatibility

Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.

In the Box

Housing
O-Ring # 0109 (installed)
Port cover # 0200.08 (installed)
Silicone lubricant 1cc tube
